Introduction Khoom taw qhia: | |
Ntawm tes | Mono 156.75mmx31.2mm High Efficiency Solar Cell |
Tsis muaj ntawm cov | 408（34×12） |
Rated Tshaj Loj Fais Fab (Pmax) | 405W |
Hlaus Box | IP67 |
Qhov Siab Tshaj Plaws Cov Hluav Taws Xob | 1000V / 1500V DC (IEC) |
Kev khiav hauj lwm kub | -40℃～+85℃ |
Qhov ntev | Xyoo 1941mm × 1048mm × 40mm |
Nyhav | 23kg ± 3% |
Description Cov khoom qhia:

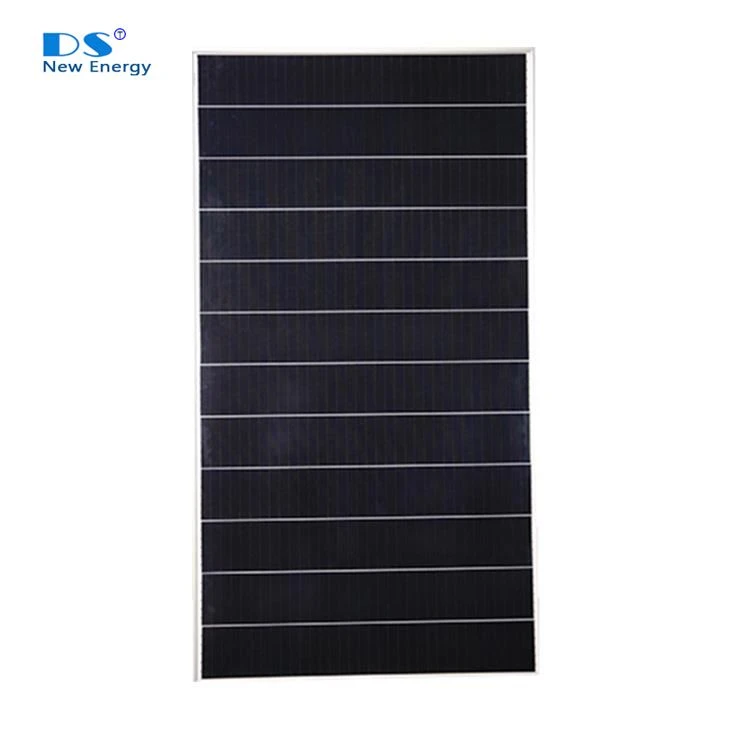

408 Shingled Cell Mono Hnub Ci PV Vaj Huam Sib Luag.
5-10% ntxiv rau lub zog hluav taws xob tau nce rau 34x12 txheej txheej shingled txiav hlwb tshiab tsim 405W dab noj hnub ci mono hnub ci Pv vaj huam sib luag uas yog cov txiaj ntsig ntawm daim ntawv thov ntawm kev siv hluav taws xob uas ua rau cov kev sib tshuam tshiab thev naus laus zis.
Lub hnub ci vaj huam sib luag suav nrog kev sib koom ua ke ntawm hnub ci hlwb hluav taws xob sib txuas nrog ib leeg hauv txoj hlua raws txoj kab kev taw qhia. Txhua ntawm lub hnub ci hlwb tsim los ntawm cov hnub ci xovtooj ntawm tes uas ci nrog sib hwm rau ib leeg nyob rau kev coj tus cwj pwm. Qhov shingling kev taw qhia yog nyob ntawm txoj hlua coj.
Cov xov tooj ntawm tes uas tsis muaj tseeb yog nyob ntawm Passivated Emitter thiab Rear Cell (PERC) txoj kev tsim qauv. Tus qauv tsim qauv ua ke nrog cov kev sib txuas ua ke thiab cov kab sib txuas rau txhua lub xov tooj kom txo tau kev poob zoo thaum cov seem ntawm cov qauv saum npoo tau plooj lossis plav.
1 TSEEM CEEB
2 NEEG TXHEEJ TXHEEM DAG
3 KEV TSWJ RAUG RAU NPE ntawm STC
Rated Lub Zog Loj (Pmax) [W] | 390 | 395 | 400 | 405 |
Qhib Circuit Court Voltage (Voc) [V] | 44.71 | 44.91 | 45.12 | 45.32 |
Lub zog hluav taws xob tshaj plaws (Vmp) [V] | 36.80 | 37.01 | 37.21 | 37.41 |
Luv Circuit Court Tam Sim No (Isc) [A] | 11.16 | 11.24 | 11.33 | 11.41 |
Qhov ntau zog tam sim no (Imp) [A] | 10.60 | 10.67 | 10.75 | 10.82 |
Module efficiency [%] | 19.17 | 19.42 | 19.66 | 19.91 |
Lub hwj chim kam rau ua | 0~+5W | |||
Kub Coefficient ntawm Isc (α_Isc) | 0.05%/℃ | |||
Qhov kub thiab txias Coefficient ntawm Voc (β_Voc) | -0.275%/℃ | |||
Qhov kub thiab txias Coefficient ntawm Pmax (γ_Pmp) | -0.368%/℃ | |||
STC | Irradiance 1000W / m², cell kub 25 ℃, AM1.5G | |||
Qhov tseem ceeb tshaj plaws ntawm hnub ci photovoltaic lub zog tsim hluav taws xob yog hnub ci cell, suav nrog monocrystalline silicon, polycrystalline silicon, amorphous silicon thiab zaj duab xis nyias.
Polysilicon hlwb yog kwv yees li 18 txog 21 rau ib xees, thaum lub hlwb monocrystalline muaj txog 20 txog 24 rau ib xees. Lub hnub ci vaj huam sib luag tsim los ntawm ib lossis ntau dua hnub ci hlwb yog hu ua photovoltaic module.
