Cov Lus Qhia Ceev
Mob: Tshiab | Hom Lub Npe: DS Tshiab Zog |
Qhov chaw keeb kwm: Zhejiang, Suav Teb (Mainland) | Daim Ntawv Thov: Chav |
Lub Hwj Chim Ntawm Lub Zog: Hnub Ci | Hom: Split Phab Ntsa Mounted Hnub Ci Cua Txias |
Cua Txias / Cua Sov: Cua Txias / Cua Sov | Daim ntawv pov thawj: CE, SGS, ISO9001: 2015 |
Cua Txias Peev Xwm (btu): 12000 | EER / COP: 5.58 / 5.66 |
Voltage (V): 48 | Tus Qauv Zauv: GTP-12 |
Qhov Txias Peev Xwm: 3500W / 12000BTU / H | Cua Sov Muaj Peev Xwm: 3700W / 13000BTU / H |
Kev Tiv Thaiv Cua Txias Raus Cov Fais Fab: 627W | Cua Sov Rated Input Power: 653W |
Txias Rated Input Tam Sim No: 13.06A | Cua Sov Rated Input Tam sim no: 13.60A |
Cua Kev Tawm: 580m3 / h | Cov Khoom Siv Ua Yeeb Yaj Khawm (R410A): 1.05kg |
Chav nyob sab hauv tsev Khoom hnyav tag nrho: 14.8kg Thauj qhov dav: 905 * 370 * 283mm | Sab nraum zoov chav tsev Qhov hnyav tag nrho / Qhov Loj: 40kg Shipping Dimension 890 * 360 * 590mm |
Khoom Piav Qhia
Lub 35GW DC48V Hnub Ci Lub Tshuab Cua Txias yog qhov zoo tshaj plaws rau cov chaw nyob, chaw sib txuas lus, kev sib tham hauv xov tooj, chav nqa khoom lossis chaw ua haujlwm, lossis cov chaw nyob deb uas cov pa hluav taws xob tsis zoo lossis tsis muaj kev ntseeg tau.Ua cov thev naus laus zis ntawm 100% lub hnub ci cua txias, cov yam ntxwv tseem ceeb ntawm peb cov khoom yog raws li nram no:
Hnub ci tshuab cua txias yuav tsum tsis muaj AC Lub Zog.
Txhua DC-Tsis Tshaj Tawm Inverter 100% Kev Ua Haujlwm DC
Kuj tsis paub meej Ceev BLDC (Brushless DC)
Kev pw ua haujlwm hmo ntuj muaj
Ua haujlwm ntsiag to
Ua haujlwm nrog exernal txheem hnub ci them maub los
Cov roj teeb tau teeb tsa ua hauv cov kab thiab ib txhij rau 48V DC Kev Ua Haujlwm
Hnub ci vaj huam sib luag thiab roj teeb xav tau muaj peev xwm sib txawv raws li cov ntawv thov thiab cov teeb meem hauv tshav ntuj hauv zos.
Khoom muag qhia
Txheej txheem cej luam
Lub DC48V 100% lub hnub ci cua txias yog ib qho ywj pheej off-daim phiaj hnub ci lub hnub ci cua lub tshuab cua txias uas siv nws cov cim hnub ci rau kev ua haujlwm ywj pheej ntawm DC48V cov cuab yeej cua txias. Muaj feem xyuam rau cov chaw uas feem ntau cuam tshuam thaum tsis muaj hluav taws xob lossis tsis muaj hluav taws xob.
Cov yam ntxwv tseem ceeb
• 100% hnub ci lub zog, ua hluav taws xob los ntawm hnub ci ci.
• DC48V lub tshuab pa thiab lub cev muaj zog, tsis muaj tus hloov inverters.
• Lub tshuab cua txias ywj siab, tsis muaj daim phiaj siv rau pej xeem.
• Rov kho dua cov naj npawb ntawm cov hnub ci hnub ci thiab cov ntim hluav taws xob kom tau raws li cov kev xav tau ntawm cov tib neeg (xws li cov sijhawm ua haujlwm thiab cov sijhawm ua haujlwm).
Cov Qauv

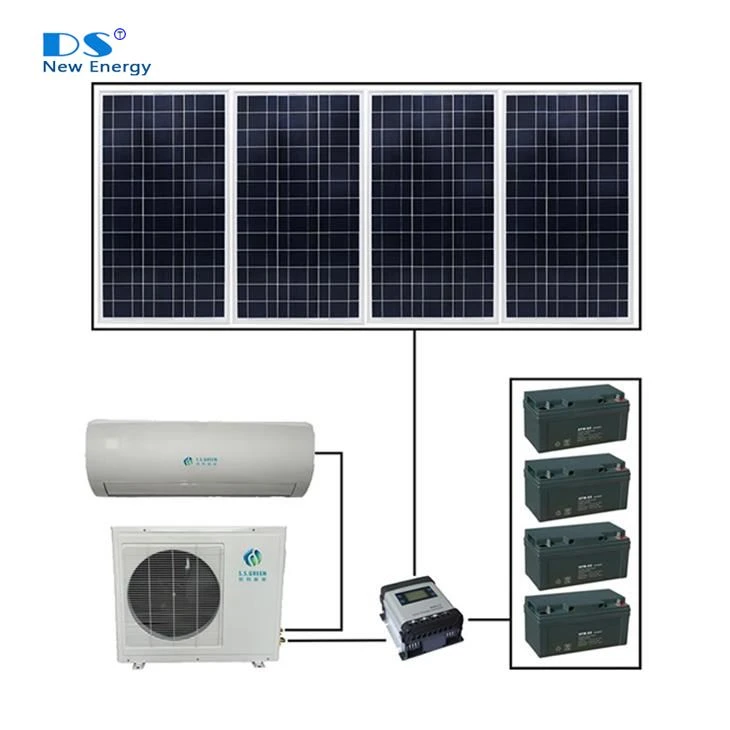

100% lub hnub ci cua txias yog tsim los ntawm cov khoom siv sab hauv tsev, chav sab nraum zoov, chav ua vaj huam sib luag, hnub ci xws li, roj teeb, PV cab hluav taws xob thiab cov cim:
Tus Qauv Ua Haujlwm
•100% lub hnub ci zog, zog los ntawm cov hnub ci ci.
•100% tsav los ntawm lub hnub ci zog, 100% lub zog txuag
•48V DC zog tsav, tsis muaj tus inverter yuav tsum tau, tsis muaj AC fais fab xav tau
•Lub voj voog sib sib zog nqus roj teeb raws li lub zog txhab nyiaj rau yav hmo ntuj ua haujlwm, dhau 8 teev rov qab sijhawm.
•DC inverter haujlwm ruaj nrees hlau nplaum compressors
•Kev siv hluav taws xob qis tshaj, ua suab nrov qis tshaj
•DC txhuam hniav sab hauv tsev thiab sab nraum zoov lub cev muaj zog
•Lub sijhawm luv peev nyiaj rov qab (1-3 lub xyoos)
•R410a eco-phooj ywg tub yees
•Kev siv hluav taws xob tsawg tshaj plaws, SEER> 19,48V DC Cua Txias
•Kev khiav hauj lwm voltage ntau: 60 ~ 100V DC
Txoj kev sib deev
DC 48V 100% Hnub Ci Cua Txias | ||||
5 teev illumination thiab 10 teev cua txias dua ib hnub | ||||
Hnub ci cua txias | 9000btu | 12000btu | 18000btu | 24000btu |
Gel Roj Teeb | 4pcs 12V100AH | 4pcs 12V100AH | 4pcs 12V200AH | 4pcs 12V200AH |
Roj Teeb Hauv Kev Ua Haujlwm Series | ||||
Vaj Huam Sib Luag Solar PV | 4pcs 36V250W | 4pcs 36V250W | 8pcs 36V250W | 8pcs 36V250W |
2pcs panels hauv series, 2groups hauv parallel | 2pcs panels hauv series, 4groups hauv parallel | |||
48V maub los | 30A | 30A | 40A | 40A |
Cov ntaub ntawv cua txias
Qauv | GTP-09 | GTP-12 | GTP-18 | GTP-24 | |
Kev tsuj roj | DC48V | ||||
Muaj Peev Xwm Txias | 2600W 9000BTU / H | 3500W 12000BTU / H | 5000W 18000BTU / H | 7000W 24000BTU / H | |
Cua Sov Muaj Peev Xwm (W) | 2800W 9500BTU / H | 3700W 13000BTU / H | 5000W 18000BTU / H | 7000W 24000BTU / H | |
Cua Kev Ncig (m3/h) | 500 | 580 | 900 | 1100 | |
Cov Ntaus Hluav Taws Xob (W) | Txias | 463 | 627 | 896 | 1268 |
Cov cua kub | 491 | 653 | 892 | 1261 | |
Cov Ntaus Tawm Tam Sim No (A) | Txias | 9.65 | 13.06 | 18.67 | 26.42 |
Cov cua kub | 10.23 | 13.6 | 18.58 | 26.27 | |
EER / COP | 5.62/5.7 | 5.58/5.66 | 5.58/5.6 | 5.52/5.55 | |
Txuj Ci Ntsuas (R410A) Kg | 0.95 | 1.05 | 1.55 | 2.3 | |
Chav nyob sab hauv tsev | Suab nrov dB (A) | 41 | 43 | 45 | 48 |
Nyhav Nyhav Luj tag nrho (kg) | 11.2/14.8 | 11.2/14.8 | 16.5/19 | 16.5/19 | |
Sab nraum zoov chav tsev | Suab nrov dB (A) | 52 | 54 | 56 | 60 |
Nyhav Nyhav Luj tag nrho (kg) | 35/40 | 35/40 | 61/66 | 65/70 | |
Chav nyob sab hauv tsev | Net Dimension (hli) | 795*285*215 | 795*285*215 | 1090*330*255 | 1090*330*255 |
Shipping Dimension (hli) | 905*370*283 | 905*370*283 | 1145*375*315 | 1145*375*315 | |
Sab nraum zoov chav tsev | Net Dimension (hli) | 760*255*525 | 760*255*525 | 865*310*710 | 865*310*710 |
Shipping Dimension (hli) | 890*360*590 | 890*360*590 | 1025*395*790 | 1025*395*790 | |
Txuas Specifications yeeb nkab (hli) | Kua Kab Yeeb | φ6.35 | φ9.52 | ||
Cov Pa Roj Yeeb | φ12.7 | φ16 | |||
txuas kab specifications | 5 * 1.5mm² * 3.6m | 4 * 1.5mm² * 4.15m | |||
Lub hwj chim kab tshwj xeeb | 3 * 4mm² | 3 * 6mm² | |||
Compressor Hom | Toshiba | ||||
Cov ntsiab lus
1. 100% lub hnub ci cua txias:
• DC48V compressor, ruaj ruaj ruaj ruaj hlau puv DC hom, 100% lub zog txuag;
• 48V tag nrho DC inverter maub los system, tsis muaj qhov xav tau inverter, txhim kho kev siv;
• Lub cev muaj zog rau sab hauv thiab sab nraud siv brushless DC lub cev muaj zog zoo thiab kev pab lub neej ntev;
• Ua haujlwm siab hloov cov cua sov, txuag hluav taws xob ntau dua.
2. Vaj huam sib luag rau hnub ci:
Qhov zoo ntawm 100% hnub ci cua tshuab ua kom txias
Ntim thiab logistics
